RSHT Chimney Fan – Solid-fuel
Tired of smoke getting into your eyes? The RSHT is the cure. It will literally suck the smoke out from the chimney flue This high-temperature exhaust fan is typically used in venting solid-fuel fireplaces, BBQs, pizza ovens and stoves.
Installation is clean and easy – and the fan’s compact design is barely visible from the ground level. The fan can be recessed or hidden behind the chimney top enclosure.
Specifications
| Capacities | 0-1,500 CFM (450-2,550 m3/h) |
| Material | Stainless Steel Housing and Axial Vane |
| Drive | Axial Vane |
| Motor | Variable Speed, TEFC, Class H |
| Max. Temp | Interm. 1400° (760°C), Contin. 1000°F (540°C) |
| Warranty | 2-Year Factory Warranty 10-Year Warranty Against Corrosion Perforation |
| Listings | UL 378 Standard for Draft Equipment UL 705 Standard for Power Ventilators CSA3-B255-M81 Standard for Mechanical Flue Gas Exhauster |
- Quiet Operation
- Variable-speed motor
- Use with solid-fuel fired appliances
- Comes in 4 sizes
- Low operating costs
- 6-months Performance Guarantee
Companion Products
Smart Remote ControL
– With an Xzense control (in conjunction with an exodraft chimney fan system), you obtain full control of your fireplace and maximum comfort. EFC 211 Solid Fuel Fan Controller – uses a control box and a speed control unit to monitor chimney fan operation
Solid Fuel Fan Controller
The EFC 211 Fan Control monitors and maintains proper draft in solid-fuel fired heating appliances by monitoring the speed of a chimney fan. MFD-S Manual Fireplace Damper— used in a combined fan and damper system for use with solid-fuel applications
Manual Fireplace Damper
This is an energy-saving, low profile, manually operated fireplace damper used as a component in a combined fan and damper system for use with solid-fuel applications only.
RS Chimney Fan – Gas fuel
Are you having incurable draft problems? Look no further for a solution. The RS Chimney Fan mounts outside the chimney, where it literally sucks the smoke out from the chimney flue.
The chimney fan is designed to disperse the smoke sideways (horizontal) just like a standard chimney cap. The RS is particularly suitable for gas-fired fireplaces and stoves.
Installation is clean and easy – and the fan’s compact design is barely visible from the ground level. The fan can be recessed or hidden behind the chimney top enclosure.
Specifications
| Capacities | 0-1,500 CFM (450-2,550 m3/h) 0-1,800 CFM (0-3,000 m3/h) |
| Material | Cast Aluminum Housing and Stainless Steel Axial Vane |
| Drive | Axial Vane |
| Motor | Variable Speed, TEFC, Class H |
| Max. Temp | 575°F (300°C) |
| Warranty | 2-Year Factory Warranty 10-Year Warranty Against Corrosion Perforation |
| Listings | UL 378 Standard for Draft Equipment UL 705 Standard for Power Ventilators CSA3-B255-M81 Standard for Mechanical Flue Gas Exhauster |
- Quiet Operation
- Variable-speed motor
- Use with solid-fuel fired appliances
- Comes in 4 sizes
- Low operating costs
- 6-months Performance Guarantee
Companion Products

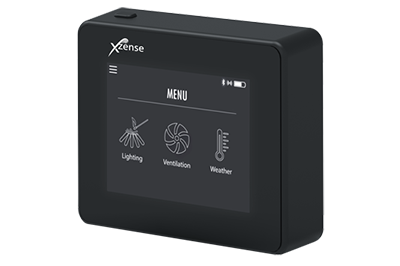

Smart Remote ControL
With an Xzense control (in conjunction with an exodraft chimney fan system), you obtain full control of your fireplace and maximum comfort.

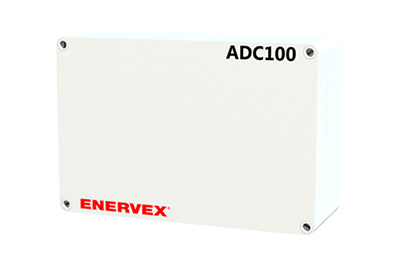

Fan and damper Control
This Fan and Damper Control is used to control draft in a fireplace where modulation is not required. It controls the speed of the fan to maintain proper pressure in the chimney.

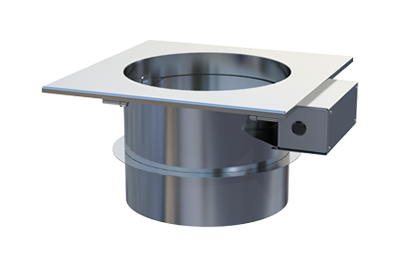

Manual Fireplace Damper
An energy-saving, low profile, automated chimney-top mounted fireplace damper for use with gas-fired applications.

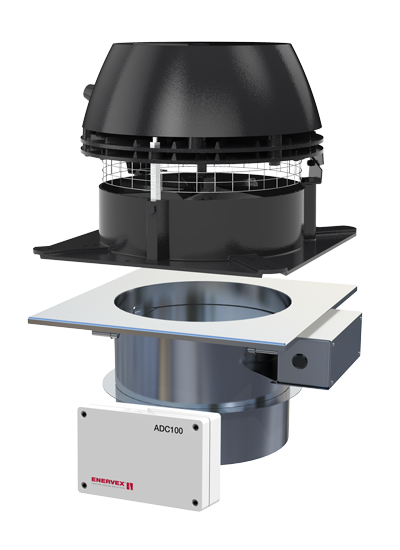

Complete fan and control packages available from a single manufacturer
ENERVEX provides a full line of listed, fully integrated residential venting systems for a truly one-stop design.
All products are manufactured by one manufacturer, which means our systems will work together seamlessly. No guesswork in the design process, and the flexibility to add what you need, when you need it.
At ENERVEX, one supplier takes full responsibility for the performance, efficiency and sustainability of your system with the best guarantees and warranties in the business.

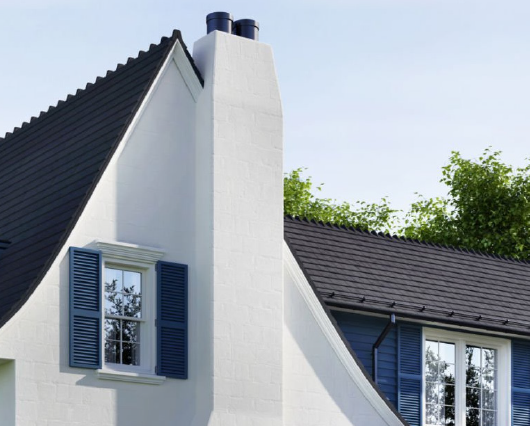

Aesthetic look with low height
